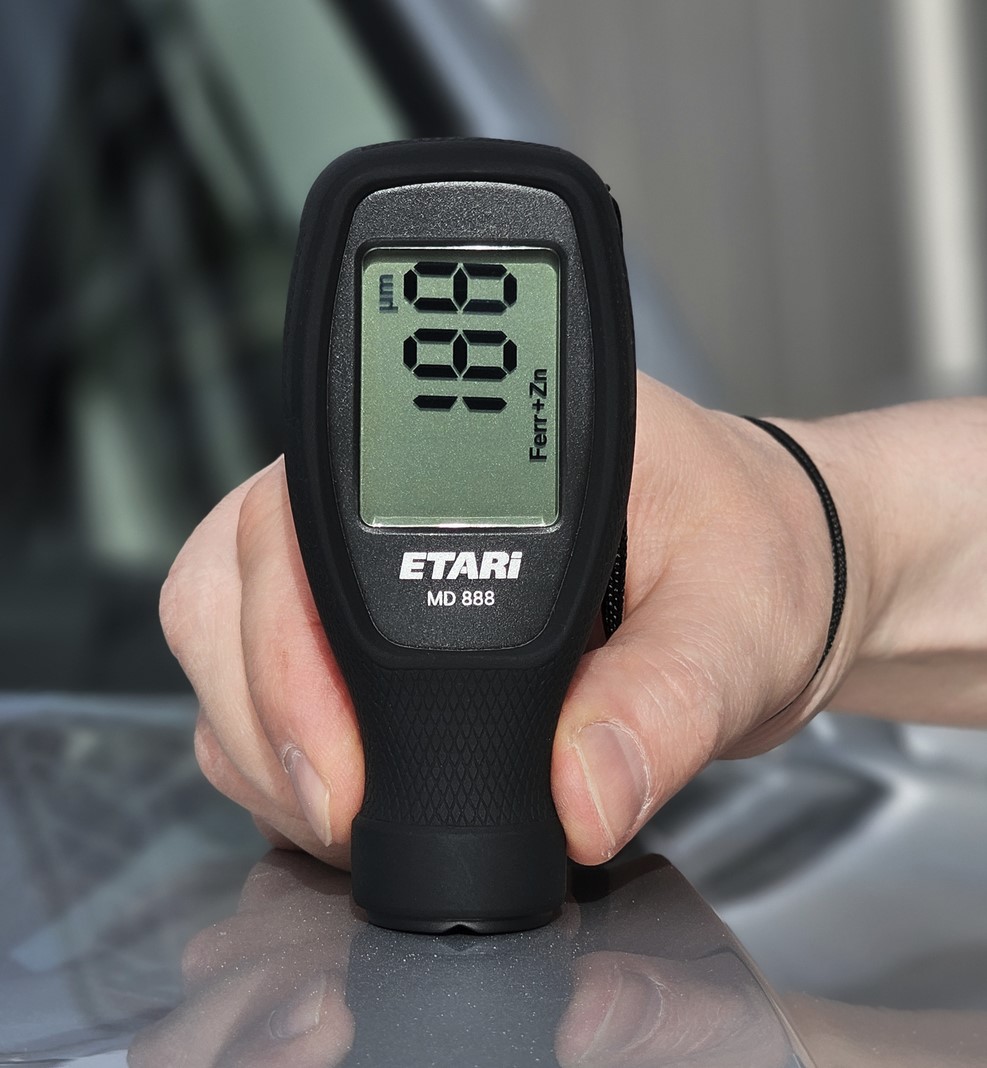

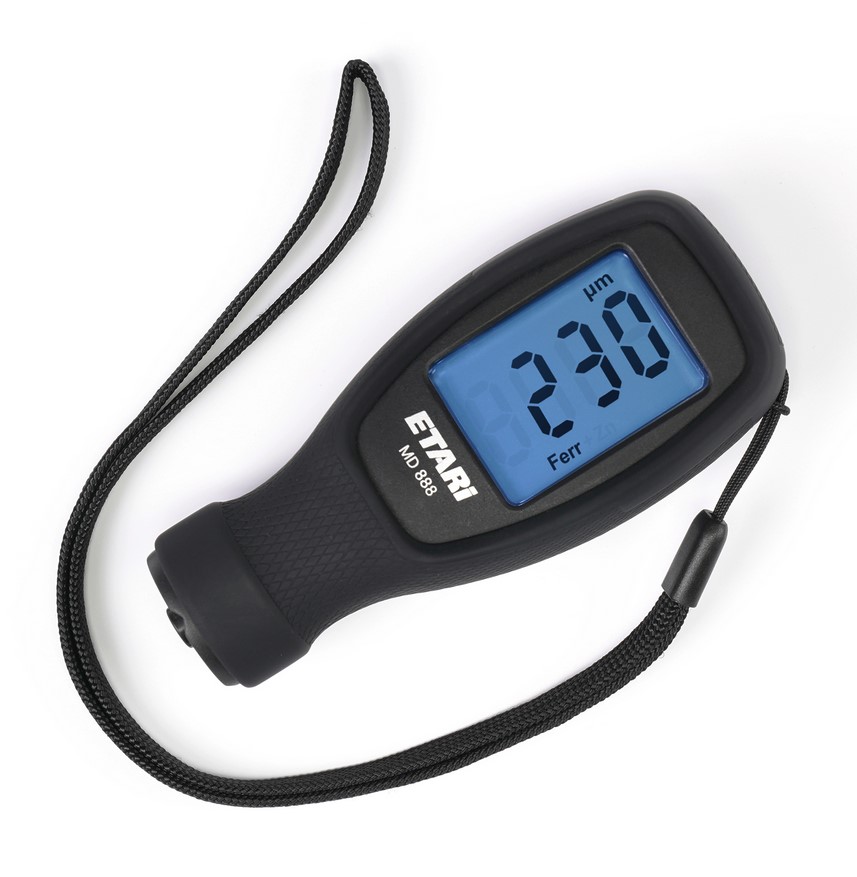

Discover the MD 888 Paint Measuring Device by ETARI GmbH, Model 2024
Specifically designed for professionals in the automotive sector, the MD 888 enables second-quick and precise paint thickness measurements on all metallic body parts.
Its very handy design and the ability to detect galvanizations and magnetic filler make it an indispensable tool for car purchasing and accident inspection.
Furthermore, the coating thickness gauge is robust and winter-proof up to temperatures of -15°C, ensuring reliability under various working conditions.
The combination of speed, precision, and user-friendliness defines the new standard for paint inspections in professional use.
Advantages of the Device:
- +
- + Power on by pressing the sensor
- + Suitable for
- +
- + Sensor made of wear-resistant ruby
- + Winter-proof at operating temperatures from -15°C to + 50°C
- + The rubber protective cover shields the device from dust and impacts
- + The wrist strap prevents the device from falling
- + The LED and display lighting with automatic on and off after 7 seconds allows working in dark environments
- + Switch between mils and μm
- + Automatic shutdown after 50 seconds to save battery
- + Lightning-fast: response time under 0.5 seconds
- + Acoustic signal at measurement and shutdown
- + Automatic calibration via the reset button allows for precise measurement of paint thickness differences without needing to calibrate the device

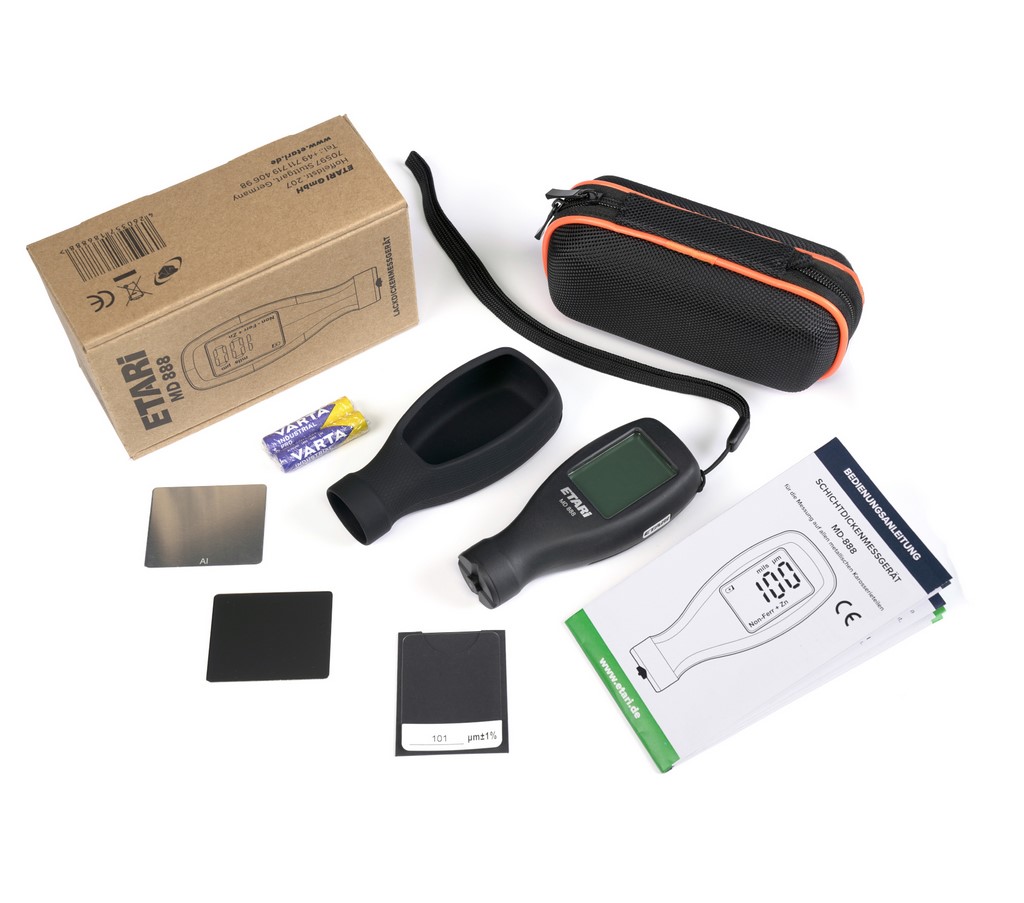

Scope of Delivery:
- 1 x Paint measuring device MD 888
- 2 x Calibration disks (Ferrous and Non-Ferrous)
- 1 x Calibration foil with standard thickness of 101 micrometers
- 2 x AAA batteries (brand may vary from product photo)
- 1 x Case
- 1 x Wrist strap
- 1 x Rubber protective cover
- 1 x Operating instructions (German and English)
Technical Features:
Measurable base materials: Ferrous metals (iron, steel) and non-ferrous metals (copper, aluminum, zinc, bronze, brass)
Ferrous metal measuring range: 0 to 2000μm, 0 to 80.0mils
Non-ferrous metal measuring range: 0 to 2000μm, 0 to 80.0mils
Display resolution: 0.1mils/1μm
Response time: under 0.5 seconds
Operating temperature: -15°C to 50°C
Dimensions: 110 mm (H) x 47 mm (W) x 30 mm (D)
Weight: approx. 85 g (incl. batteries).
Ferrous Metal Accuracy:
- ±7μm on 0 to 199μm
- ±(3%+10μm) on 200μm to 1999μm
- ±0.3mils on 0 to 7.8mils
- ±(3%+0.4mils) on 7.9mils to 80.0mils
Non-Ferrous Metal Accuracy:
- ±7μm on 0 to 199μm
- ±(3%+10μm) on 200μm to 1999μm
- ±0.3mils on 0 to 7.8mils
- ±(3%+0.4mils) on 7.9mils to 80.0mils
